STRAINERS

Cast Steel Body, Stainless Steel Body, Lined or Un-lined internally, Full Plastic Body



LINED IN PTFE, PFA, FEP OR PVDF

FULL PLASTIC IN PVC, PP, PVDF

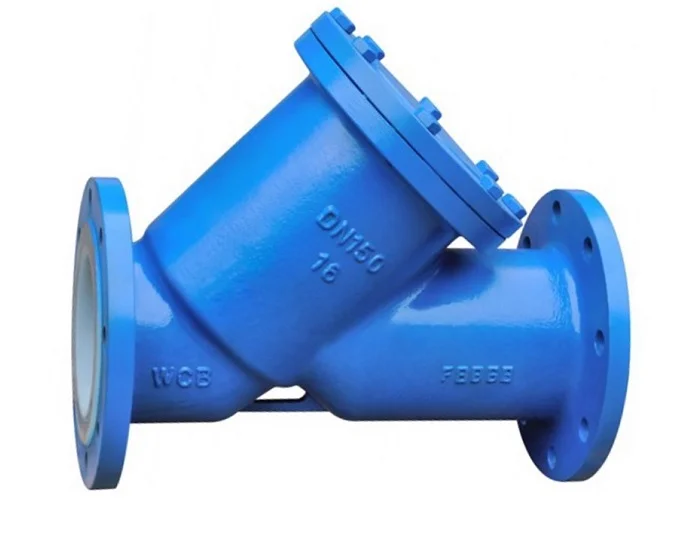

LINED STRAINERS



Resistochem cc Strainers meet the highest requirements of the chemical industry where it’s important to ensure high resistance to corrosion under severe working conditions. The PTFE, PFA, or FEP heavy duty lining prevents any damage even if aggressive and permeating fluids circulate inside the strainer.



The strainer has a filtering system inside the body in the form of a basket, made of PTFE with various Micron hole options for filtering. The medium that is running through the line is filtered through the basket, whereby the solid materials are to stay inside the PTFE Basket while allowing the fluid to flow continuously.

Size Range: DN25-DN300

Pressure: 150LB

Body Material: SS304, DI, WCB, CS PFA Lined

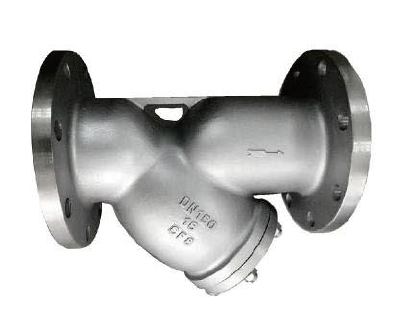

STAINLESS STEEL Y-STRAINER

Size Range: DN15-DN600

Pressure: 150LB / PN16

Body Material: SS304

DUCTILE IRON Y-STRAINER

Size Range: DN50-DN450

Pressure: 150LB / PN16

 Body Material: DI

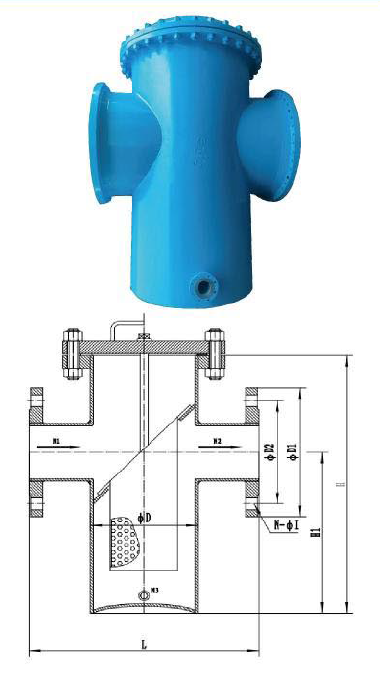

STAINLESS STEEL BASKET STRAINER

Size Range: DN50-DN400

Pressure: 150LB / PN16

Body Material: SS304

DUCTILE IRON BASKET STRAINER

Size Range: DN15-DN400

Pressure: 150LB / PN16

Body Material: DI

Standard EPDM rubber seat enable the valves to have super stable and reliable resilience. No leakage after opening and closing more than 10,000 times.



Features: High precision and high quality, The suitable medium includes water, oil, steam, sewage. It is mainly used in municipal construction, water conservancy projects, oil products, water supply and drainage, water treatment.



The Y strainers can be installed vertically or horizontally and are suitable for connection with flanges according to DIN EN 1092-1 or ANSI B 16.5 150/300 class from DN 25-1” to DN 250-10”.

PLASTIC STRAINERS

Size Range: DN15-DN100

Pressure: PN10

Body Material: C-PVC, U-PVC, PP-H, PVDF

Standards: DIN, ANSI, JIS, NPT, BSPT

Features:

Removable screen for cleaning

Transparent body in PVC

Union design for easy replacement

Suitable for horizontal or Vertical installation

Flange Connection optional
